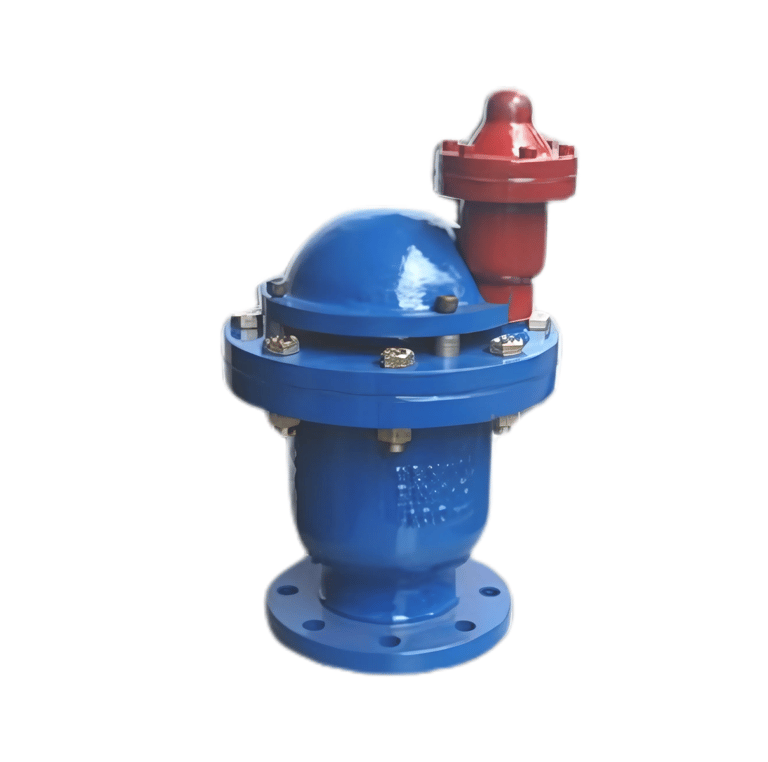

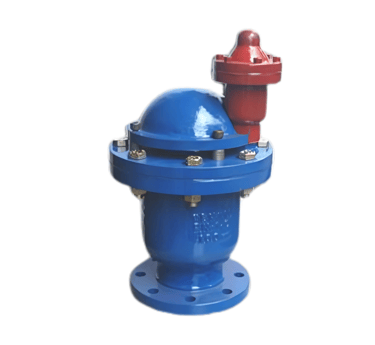

Kinetic Air Valve

Application

Air release valve shall be capable of controlling the release of entrapped air and large volumes of air during a pipeline filling operation. Similarly, should a vacuum condition occur, the valve shall be capable of allowing a controlled intake of air into the system to minimize surge.

Codes and Standards:

1. Design and Manufacturing : IS 14845: 2000

2. Valve Inspection and Testing : IS 14845: 2000

3. Flange Standard : IS 1538/BS 10 Table D/E

4. Size Range : 50mm TO 200mm

Technical Specification:

1. Air Release and Anti-Vacuum Valve.

2. Large Orifice Area for High Air Flow.

3. Small Orifice with 'O' Ring Seal.

4. Integral Bucket Type Ball Rest.

5. Temper Proof Vent & Integral Lock.

6. Zero Water Leakage.

7. Working Pressure : 0.2 to 16 Kg/Sq.Cm : 1.35 to 16 Kg/Sq.Cm.

8.Pressure Class : 1.0/1.6
