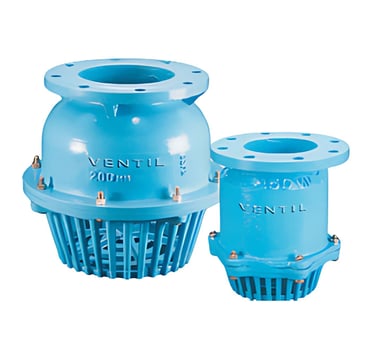

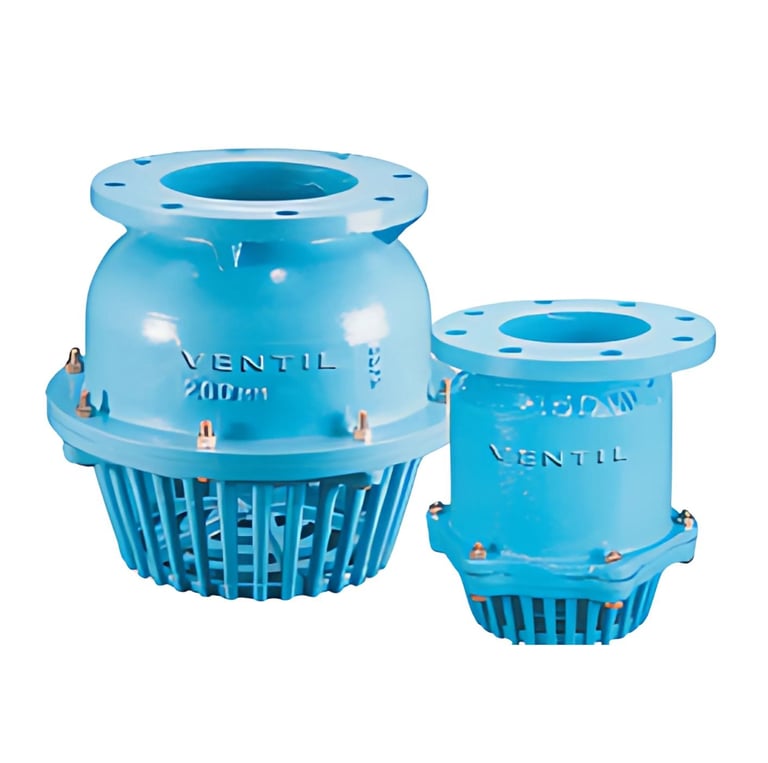

Swing Type Foot Valve

Application:

Ventil make cast iron foot valves are manufactured as per IS: 4038. These valves are used at the lower end of the suction pipe of a centrifugal pump to prevent the suction pipe from emptying while the pump is at rest. This valve is used when the suction lift or vertical height of pipe is considerable. These foot valves are designed for vertical suction pipes only.

Codes and standards:

1. Design and manufacturing : IS 4038 – 1986

2. Valve face to face dimensions : IS 4038 – 1986

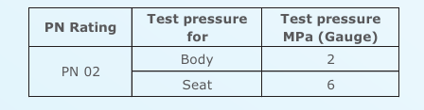

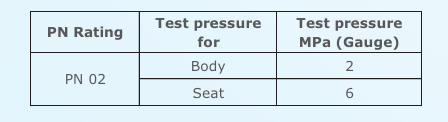

3. Valve Inspection and Testing : IS 4038 – 1986

4. Flange Standard : IS 1538/BS 10 Table D/E

5. Valve Range : 150mm to 450mm
