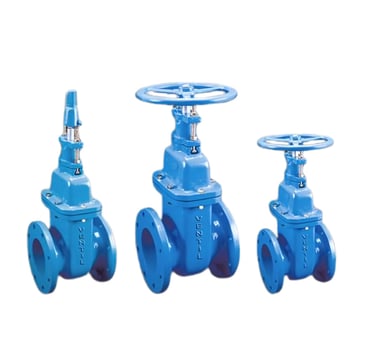

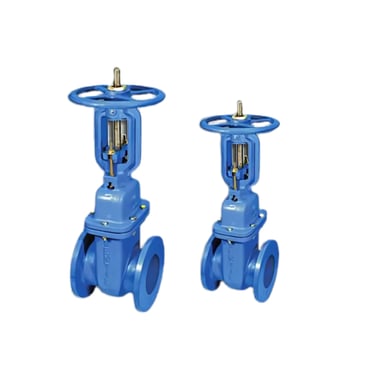

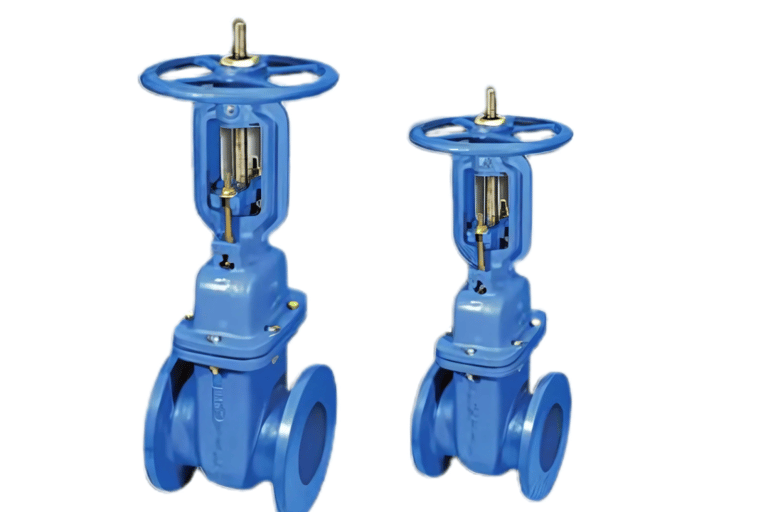

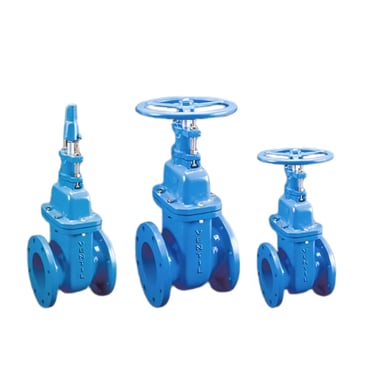

Sluice Valve (Rising & Non Rising)

Application

The sluice valves are strictly designed in accordance with IS: 14846 and are used for water works purpose. Sluice valves are not suitable for throttling purposes. The control of flow is difficult because of the valves design, and the flow of fluid slapping against a partially open gate can cause extensive damage to the valve. Expect as specifically authorized, gate valves should not be used for throlling.

Codes and Standards

1. Design and Manufacturing : IS 14846: 2000

2. Valve face to face dimensions : IS 14846: 2000

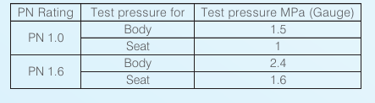

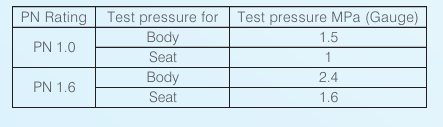

3. Valve Inspection and Testing : IS 14846: 2000

4. Flange Standard : IS 1538/BS 10 Table D/E

5. Size Range : 50mm TO 600mm
